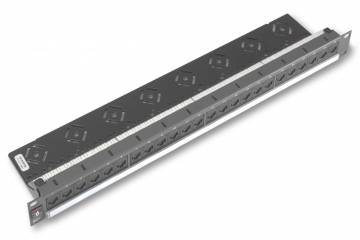

24 Port PowerCat 6 Patch Panel, 568A/B, 1U

• 24 Ports 1U
• EIA 568A/B wired
• ETL verified
• Standard 19" rack mount
• IDC contacts that flex not fatigue when terminated
• Pointed IDC towers to speed termination and enhance cable retention
• Integral cable management shelf ensures bend radius compliance
• Individually removable patch panel ports

Mechanical Characteristics
Jack Connector
Plastic Housing: Polycarbonate, UL94V-0 rated or equivalent
Operating Life: Minimum 750 insertion cycles
Contact Material: Copper Alloy
Contact Plating: 50µ” Gold/100µ” Nickel
Contact Force: 100g minimum
Plug Retention Force: 15 lb.

IDC Connector
Plastic Housing: Polycarbonate, UL94V-0 rated or equivalent
Operating Life: Minimum 200 reterminations
Contact Material: Copper Alloy IDC
Contact Plating: Tin matte finish
Contact Force: 100g minimum
Wire Accommodation: 22-24 AWG solid

Electrical Characteristics
Interface Resistance: 20 milliohms
Initial Contact Resistance: 2.5 milliohms
Insulation Resistance: >100 Megaohms
