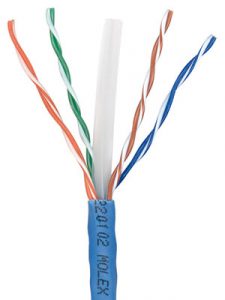

Mechanical Characteristics
Conductor: Solid Bare Copper
AWG: 23
Insulation: PE
Average Thickness (±0.03mm): 0.23
Min. Point Thickness (mm): 0.18
Insulation Dia. (±0.05mm): 1.04
Twisting Lay Length (mm): 30 underneath
Cabling Lay Length (±10mm): 140
Filler: PE
Jacket: PVC
Average Thickness (±0.05mm): 0.50
Min. Point Thickness (mm): 0.46
Weight (kg/km): 14
Operating Temperature: Minimum -20°C to maximum +50°C
Maximum Pulling Force: 100N
Electrical/Optical Characteristics
NVP (%): As listed on sheath
Delay Skew: 45ns Max
Impedance: 100 ± 15 Ohms
Current Rating: 1.5 A Max
Conductor DC Resistance: 66.5Ω/km
Voltage: 150VAC
Propagation delay: 535ns/100m @ 250MHz
Mutual Capacitance: 5.6nF/100m Nominal
Insulation Resistance: 500 MΩ Minimum
Dielectric Strength: 1000 V RMS
Contact Resistance: 10 mΩ Max
Commercial Standards
ISO/IEC 11801:2011 (Ed. 2.2),
IEC 61156-5:2012 (Ed. 2.1),
EN 50173-1:2011, EN 50173-2:2007
including amendment A1:2010,
EN 50288-6-1:2013,
ANSI/TIA-568-C.2:2009
