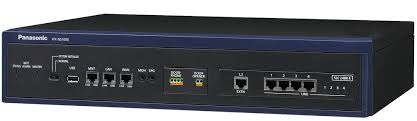

Panasonic IP-PBX KX-NS1000
Product Code: KX-NS1000
Communication servers used for business should provide solutions to current real world business requirements, such as: simplifying and improving communications, lowering costs, improving productivity, supporting SOHOs and diversifying the workplace. They should do all of these while flexibly adapting to the way each organisation works.
The KX-NS1000 Business Communications Server by Panasonic is designed to deliver these solutions by integrating hardware and software components in a modular way, allowing you to tailor a communications system to your specific needs.
Easy Setup
Even at remote locations, such as the homes of teleworkers, IP phones can be easily installed from a single site and used as extensions.
The same method can be used to extend a VPN to the entire office network for more secure communication.
Gradual IP Migration to Suit Your Budget
In addition to customers seeking total IP migration, the KX-NS1000 supports phased implementation of future IP migration for customers who wish to utilize existing equipment.
Call Centre Solution
Voice guidance for customers and call data can be output to reports and analyzed for improved customer satisfaction. Call data can be saved to an external server and exported as necessary.
Wireless Solutions
Softphones and desk phones can be paired and used with a single extension number, which leads to improved work efficiency.
Varied Terminal Line-up
A wide range of terminals and handsets are available to meet various user needs.
System Capacity
Maximum Trunks
The KX-NS1000 supports the following number of trunks.
| Type |
KX-NS1000 Stand-alone System |
KX-NS1000 Stand-alone System with Legacy GW*1 |
KX-NS1000 One-look Networking |
KX-NS1000 One-look Networking with Legacy GW*1 |
|
Total Number of Trunks |
256 ch | 256 ch | 600 ch | 600 ch |
|---|---|---|---|---|
| H.323 | 96 ch | 96 ch | 128 ch | 128 ch |
| SIP | 256 ch | 256 ch | 256 ch | 256 ch |
| BRI | 8 ch | 256 ch | 128 ch | 600 ch |
| PRI23 | 23 ch | 230 ch | 368 ch | 600 ch |
| PRI30 | 30 ch | 256 ch | 480 ch | 600 ch |
| T1 | N/A | 240 ch | N/A | 600 ch |
| E1 | N/A | 256 ch | N/A | 600 ch |
| Analogue | 2 lines | 256 lines | 32 lines | 600 lines |
*1 The capacity varies depending on which cabinet is being used as the legacy GW.
Note: The capacity varies depending on the setting conditions. Contact your dealer for further information.
Maximum Terminal Equipment
The following shows the number of each terminal equipment type supported by the KX-NS1000.
| Type |
KX-NS1000 Stand-alone System |
KX-NS1000 Stand-alone System with Legacy GW*1 |
KX-NS1000 One-look Networking |
KX-NS1000 One-look Networking with Legacy GW*1 |
| Telephone | ||||
|---|---|---|---|---|
|
Total Number of Extensions |
640 | 640 | 1000 | 1000 |
| SLT | 2 | 480 | 32 | 1000 |
| DPT | N/A | 320 | N/A | 512 |
| APT | N/A | 160 | N/A | 336 |
| IP-PT*2 | 640 | 640 | 1000 | 1000 |
| SIP | 640 | 640 | 1000 | 1000 |
| SIP Phone*3 | 640 | 640 | 1000 | 1000 |
| KX-UDT Series | 255 | 255 | 255 | 255 |
| DSS Console | N/A | 64 | N/A | 64 |
| CS | 64 | 64 | 128 | 128 |
| DPT-CS (2ch) | N/A | 64 | N/A | 128 |
| DPT-CS (8ch) | N/A | 32 | N/A | 64 |
| IP-CS | 64 | 64 | 128 | 128 |
| PS | 512 | 512 | 512 | 512 |
|
Voice Processing System (VPS) |
N/A | 4 | N/A | 8 |
| Doorphone | 1 | 33 | 8 | 64 |
| Door Opener | 1 | 33 | 8 | 64 |
| External Sensor | 1 | 33 | 8 | 64 |
| External Relay | N/A | 33 | N/A | 64 |
*1 The capacity varies depending on which cabinet is being used as the legacy GW.
*2 KX-NT500 series, and KX-NT265 (software version 2.00 or later only).
*3 KX-UT Series, KX-NT700 and third party SIP phones (SIP hardphones/SIP softphones).
Note: The capacity varies depending on the setting conditions.
