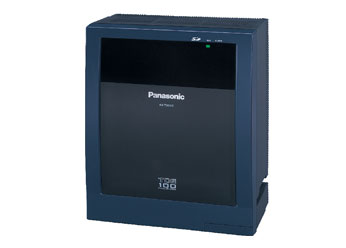

Panasonic IP-PBX KX-TDE100
Product Code: KX-TDE100
Initial system accepts up to 64 IP-proprietary telephones and 32 IP-trunks with the optional DSP card
SIP phones accept up to 128 standard
2 Built-in LAN ports
Support the new IP-PT KX-NT300 Series
Full support of KX-TDA features
Upgradeable to KX-TDE by changing the main card (IPCMPR) in the KX-TDA
Multi-site programming
Server Connection
- DHCP client for KX-TDE
- SNMP Agent / Alarm
- SNTP client
Built-in simplified voice message
Enhanced walking extension (Hot Desking)
| Type | Total Number of Trunks | Trunk with option card | 120 |
| IP Trunk on MPR card | 64*1 | ||
| H.323 trunks | 32 | ||
| SIP trunks | 32 | ||
| Terminal Equipment Type | Telephone | SLT | 96 |
| KX-DT300 / KX-T7600series DPT | 128 | ||
| Other DPT | 32 | ||
| APT | 24 | ||
| IP-PT | 192 | ||
| IP-PTsup*2/sup (supported by IP-EXT16card) | 96 | ||
| IP-PTsup*3/sup (supported by MPRcard) | 128 | ||
| SIP Extension | 128 | ||
| DSS console | 8 | ||
| CS | 32 | ||
| High-density CS | 16 | ||
| IP-CS | 16 | ||
| PS | 128 | ||
| Voice Processing System (VPS)sup*4/sup | 2 | ||
| Doorphone | 16 | ||
| Door Opener | 16 | ||
| External Sensor | 16 | ||
| External Relay | 16 | ||
| NOTE |
*1 Even when Digital XDP is used, each shelf supports a maximum of 256 KX-DT300/KX-T7600 series DPTs. *2 KX-NT300 series (except KX-NT366/KX-NT305), KX-NT265, and KX-NT136 *3 KX-NT400, KX-NT300 series, and KX-NT265 (software version 2.00 or later only) *4 Only a single VPS can be connected to one optional service card. |
||
