Panasonic IP-PBX KX-HTS824
Product Code: KX-HTS824
- Basic Call Featueres in built No Options
- Flexible Trunk Line Selection (Analogue/IP)
- Smartphone as Extension
- Built-in Router, Wi-Fi Access Point
- Video Communication
- Cost Performance, Plug and Play Programming

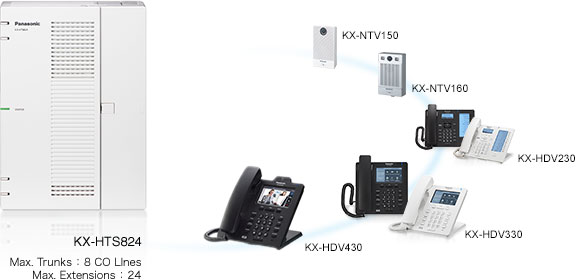

The KX-HTS824 is an advanced Hybrid IP-PBX for SMB. It has a capacity for up to 24 extensions to exactly meet the scale of SMB market. Priced affordably while possessing all the necessary standard functions built-in. The KX-HTS824 is a SIP trunk ready system, and no external devices need to be purchased for IP usage. Another unique feature is the built-in router and Wi-Fi access point. The KX-HTS824 works as a voice processing platform and also as a network device. A full line-up of terminals is available for the KX-HTS824, enabling optimal communication for SMB businesses. This system also achieves exclusive simplicity for setup and maintenance. Even for business trends such as BYOD (Bring Your Own Devices), the KX-HTS824 brings you a solution with built-in functionality.
Specifications :
System Capacity
Maximum Trunks
The KX-HTS824 supports the following number of trunks.
| Type | KX-HTS824 | |
| Preinstalled | Maximum | |
| Total Number of Trunks | 8 (6 if G.729a) | 8 (6 if G.729a) |
|---|---|---|
|
SIP |
6 (G.711) 4 (G.729a) |
6 (G.711) 4 (G.729a) |
| Analogue | 4 | 8 |
Maximum Terminal Equipment
The following shows the number of each terminal equipment type supported by the KX-HTS824.
| Type | KX-HTS824 | |
| Preinstalled | Maximum | |
| Extensions | 24 | 24 |
|---|---|---|
| SIP | 24 | 24 |
| Analogue | 8 | 24 |
| DISA (ch) | 4* | 4* |
| Built-in VM (ch) | 4* | 4* |
| Doorphone (Analogue) | 0 | 2 |
| Door Opener (Analogue) | 0 | 2 |
* The DISA and VM has a total capacity of 4 channels.
