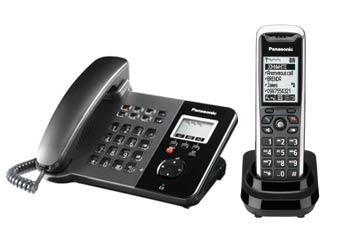

The 2-in-1 model features a base unit with phone and cordless handset.
- 100 phone book memory / 10 last dialed number
- 2.1” Large LCD with white back light on cordless handset
- Support for 3 simultaneous network conversations
- Compatible with Asterisk and Broadsoft
- Low standby power consumption
- Programmable ring groups
- Up to 6 cordless handsets
- Up to 8 SIP registrations
- Local or network intercom
- HD Voice (G.722) on DECT radio technology
- 10 days stand-by and 5 hour talk time
- DID on each cordless handset
- Handset Call Button on base unit
- Hands-free speaker phone on base unit and cordless handset
- Plug and Play configuration
- Wall mounting*
- Long handset cords
- Non-slip rubber feet
* Charger only
| VoIP Support | IETF SIP version 2 (RFC3261 and companion RFCs) | Yes | |
| BroadWorks R17 / BroadSoft | Yes | ||
| Asterisksup*1/sup | Yes | ||
| Voice Codec | G.711a-law / G.711µ-law / G.722 (wideband) / G.729a / G.726 (32K) | Yes | |
| Provisioning | HTTP / HTTPS / FTP / TFTP and Local / Remote WEB Configuration | Yes | |
| QoS Support | DSCP | Yes | |
| Static VLAN | Yes | ||
| TOS | Yes | ||
| Keys and Indications | Menu Driven User Interface | Yes | |
| Line Status | Yes | ||
| Direct Handset Call Buttons | Yes | ||
| Message Waiting Indicator on the Base Unit | Yes | ||
| RF-System | US-DECT 1.92GHz - 1.93GHz (for USA and Canada) | Yes | |
| EU-DECT 1.88GHz - 1.90GHz / GAP | Yes | ||
| Phone Features | Multiple Handset | 6 | |
| Multiple Registration Support | 8 | ||
| Simultaneous Voice Calls | 3 | ||
| 2.5mm Headset Jacksup*2/sup | Yes | ||
| Grouping Handset : Handset Select for Receiving Call | Yes | ||
| Handset and Number Select for Making Call | Yes | ||
| Redial | Yes | ||
| Do Not Disturb | Yes | ||
| Anonymous Call (CLIR) | Yes | ||
| Anonymous Call Rejection | Yes | ||
| Busy Lamp Field (BLF) for Handsets | Yes | ||
| Calling Party Name and Number Presentation (CLIP, CNIP) | Yes | ||
| Call Rejection | Yes | ||
| DTMF Dialing During Call | Yes | ||
| 3-Party Conferencing | Yes | ||
| Call Transfer | Yes | ||
| Direct Call Transfer from Base Unit to Handset | Yes | ||
| Call Hold | Yes | ||
| Call Forward Unconditional / User Busy / No Answer | Yes | ||
| Call Waiting | Yes | ||
| Distinctive Ringing | Yes | ||
| Ringtone Selection | Yes | ||
| Interface | Ethernet Ports | 2 | |
| Ethernet Interface | 10/100 Mbps | ||
| Battery | 630mAh Ni-MH�2 x AAA | ||
| Talk Time | Up to 5 hours | ||
| Standby Days | Up to 240 hours | ||
| Operating Environment |
0 °C - 40 °C (32 °F - 104 °F) 20 % - 80 % relative air humidity (dry) |
||
| Dimensions | Base unitbr(Width x Depth x Height; handset on cradle, stand attached) | 215.5 mm x 155.1 mm x 125.9 mm | |
| Weight |
Base: 720 g Handset: 130 g Charger: 60 g |
||
| NOTE |
*1 Business Edition C.x, Switch Vox Ver.4.0-4.5 *2 KX-TGP550 : on base unit and on cordless handset. KX-TGP500 : on cordless handset. |
||
