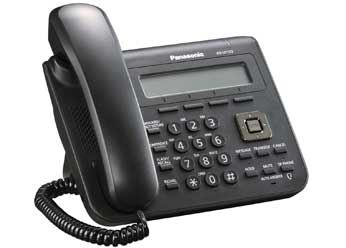

The entry model is compact and easy to install in small spaces.
- 2 SIP accounts
- 3 line display for features and for CID/dialled number
- HD Voice (G.722)
- 500 entry phonebook*1
- 3-way conference call support
- Compatible with Asterisk and Broadsoft
- 2 x 10/100M ports, PoE*2
- Low standby power consumption
- XML Application Interface
- Easy operation
- Plug and Play configuration
- Ergonomic recessed button
- Cable concealing back
- Long handset cords
- Non-slip rubber feet
- Wall mounting
*1 100 entry phonebook for the KX-UT113.
*2 1 x 10/100M ports, PoE for the KX-UT113.
| Display | LCD Display | Monochrome Graphical | |
| LCD Size | 242 x 55 pixels – 3 lines | ||
| LCD Contrast | 6 levels | ||
| LCD Backlight | KX-UT123 | On/Auto/Off | |
| KX-UT113 | N/A | ||
| Install Options | Wall Mount | KX-A432 (optional) | |
| Power Adaptor | KX-A239 (optional) | ||
| Audio Features | Handset, Speaker, Headset Volume | 8 levels (includes echo cancellation and distortion prevention) | |
| Ringtones | 32 | ||
| Ringer Volume | 6 levels + Off | ||
| Headset Port | 2.5 mm | ||
| Audio Codec | G.711a-law / G.711µ-law / G.722 (wideband) / G.729a / G.726 (32K) | ||
| HD Voice | Yes | ||
| Speaker Phone | Yes | ||
| Software Features | Phone Book (Entries) | KX-UT123 | 500 |
| KX-UT113 | 100 | ||
| Call Log Entries | 30 incoming calls + 30 outgoing calls | ||
| Conferencing | 3 parties (within terminal – multi-party dependent on server) | ||
| XML | Yes | ||
| Music on Hold | Supplied by Host Service (PBX / SIP Server) | ||
| IP Features | SIP Accounts | 2 | |
| SIP Compatibility | RFC 3261 Standard SIP Server, Asterisk, Broadsoft, Panasonic SIP PBX | ||
| IP Version | IPv4 | ||
| DHCP Client | Yes | ||
| DNS | Yes | ||
| HTTP | Yes | ||
| HTTPS | Yes | ||
| SNTP Client | Yes | ||
| VLAN (802.1q) | Yes | ||
| QoS (DiffServ) | Yes | ||
| Configuration | Plug & Play Configuration | Server based configuration, TR-069, Panasonic Redirect Server | |
| Manual Configuration | Internal web Configurator, Local (LCD based) network configuration | ||
| Interface | Ethernet Ports | KX-UT123 | 2 |
| KX-UT113 | 1 | ||
| Ethernet Interface | 10/100 Mbps | ||
| PoE (Power over Ethernet) | Yes | ||
| Power Consumption | PoE | Standby: 1.8 W (ECO mode off), 1.3 W (ECO mode on) Talking: 2 W (ECO mode off), 1.5 W (ECO mode on) | |
| AC Adaptor | Standby: 1.6 W (ECO mode off), 1 W (ECO mode on) Talking: 2 W (ECO mode off), 1.5 W (ECO mode on) | ||
| Max | 6 W | ||
| Operating Environment | 0 °C - 40 °C (32 °F - 104 °F) | ||
| Dimensions (Width x Depth x Height; handset on cradle, stand attached) | 205 mm x 160 mm x 170 mm | ||
| Weight (with handset, handset cord and stand) | KX-UT123 | 870 g | |
| KX-UT113 | 860 g | ||
