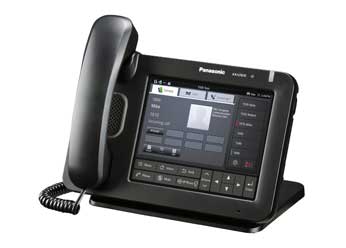

The highly expandable smart desk phone with colour LCD features a 7-inch touch-panel function.
- 6 SIP accounts
- 7 inch touch display
- HD Voice (G.722)
- 3-way conference call support
- Compatible with Asterisk and Broadsoft
- 2 x GbE ports, PoE
- Linux based open source operating system
- Full duplex speaker phone
- Electronic hook switch (Plantronics)
- Plug and Play configuration
- Cable concealing back
- Long handset cords
- Non-slip rubber feet
- Changeable angle stand
- Wall mounting
| Display | LCD Display | 262,000 colors | |
| LCD Size | 7 inch touch display | ||
| LCD Backlight | 15/Auto | ||
| HD Video | 720p | ||
| Install Options | Desk Mount Tilt | Yes – 2 positions | |
| Wall Mount | KX-A434 (optional) | ||
| Power Adaptor | KX-A422 (optional) | ||
| Audio Features | Handset, Speaker, Headset Volume | 15 levels | |
| Ringtones | 32 | ||
| Ringer Volume | 7 levels + Off | ||
| Headset Port | 2.5 mm | ||
| Electronic Hook Switch Control Port* | 3.5 mm | ||
| Audio Codec | G.711a-law / G.711µ-law / G.722 (wideband) / G.729a | ||
| HD Voice | Yes | ||
| Speaker Phone | Yes (Full Duplex) | ||
| Keys | Programmable Keys | 24 (4 pages of 6 keys) | |
| Software Features | Phone Book (Entries) | Depends on memory | |
| Call Log Entries | 100 in + 100 out | ||
| Conferencing | 3 parties (within terminal – multi-party dependent on server) | ||
| XML | From 2Q/2012 | ||
| Music on Hold | Supplied by Host Service (PBX / SIP Server) | ||
| Memory | 50 MB | ||
| IP Features | SIP Accounts | 6 | |
| SIP Compatibility | RFC 3261 Standard SIP Server, Asterisk, Broadsoft, Panasonic SIP PBX | ||
| IP Version | IPv4 | ||
| DHCP Client | Yes | ||
| DNS | Yes | ||
| HTTP | Yes | ||
| HTTPS | Yes | ||
| SNTP Client | Yes | ||
| VLAN (802.1q) | Yes | ||
| QoS (DiffServ) | Yes | ||
| Configuration | Plug Play Configuration | Server based configuration, TR-069, Panasonic Redirect Server | |
| Manual Configuration | Internal web Configurator, Local (LCD based) network configuration | ||
| Interface | Ethernet Ports | 2 | |
| Ethernet Interface | 10/100/1000 Mbps | ||
| PoE (Power over Ethernet) | Yes | ||
| Bluetooth | Optional | ||
| USB | 1 (USB 2.0 Host) | ||
| SD Card Slot | SDXC Memory Card / SDHC Memory Card / SD Memory Card | ||
| Power Consumption | PoE |
Standby: 5.2 W (Backlight OFF) Talking: 7.0 W |
|
| AC Adaptor |
Standby: 4.6 W (Backlight OFF) Talking: 6.2 W |
||
| Max |
PoE: 12.9 W AC Adaptor: 11.5 W |
||
| Operating Environment | 0 °C - 40 °C (32 °F - 104 °F) | ||
| Dimensionsbr(Width x Depth x Height; handset on cradle, stand attached) | High position: | 270 mm x 180 mm x 220 mm | |
| Low position: | 270 mm x 192 mm x 170 mm | ||
| Weightbr(with handset, handset cord and stand) | 1300 g | ||
| NOTE | * Plantronics headsets can be used with these units. Not all headsets are guaranteed to operate. | ||
