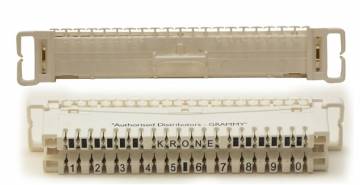

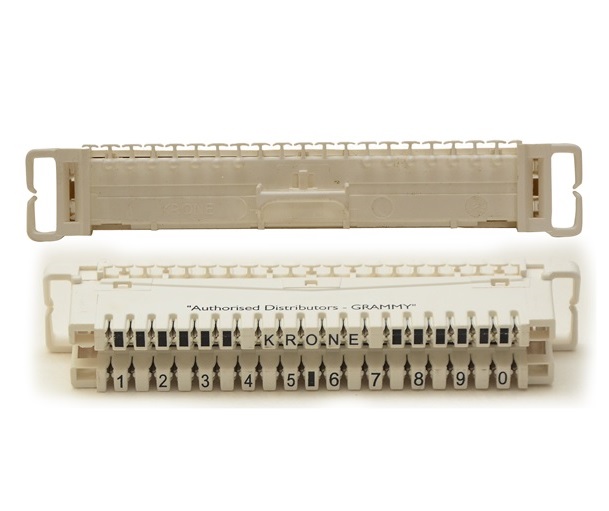

Part No. : 6904 2 208-01GC IDC Disconnection Module 2/10, for 10 pairs with disconnection facility, line testing is possible in both directions.
Features:
• Based on genuine KRONE* LSA-PLUS® connection technology
• Fits on all LSA-PLUS® back mount frames
• Suitable for use in all xDSL and ADSL 2+ circuits
• Flexible indoor and outdoor use
• Robust long term environmental stability
• Supports LSA-PLUS® series 2 accessories
• Overvoltage protection using 10 pair protection magazine
• Overvoltage & overcurrent protection using single pair protection (IPM)
Specifications :
Conductor diameter................................................................................................ 0.40 to 0.80 mm
Outside diameter..................................................................................................... 0.70 to 1.60mm
Conductor Insulation Plastic material .......................................................................PE or PVC
No of wires/contact.................................................................................................. 1 (2 wires only with conductor dia 0.4 to 0.65mm)
Temperature Operation........................................................................................... -20…+80 deg C
Relative Humidity...................................................................................................... 93% at +40 deg C
Contact type............................................................................................................. 45°IDC, Tin Plated
Connection............................................................................................................... Dry Gas tight
No. of reterminations................................................................................................ > 200
Wire Clamping & Guide............................................................................................ Double sided
Vibration................................................................................................................... IEC 50A (CO) 145, (IEC 68-2-6 Test Fc), DIN 57804
Contact resistance.................................................................................................... < 2.5 m ohm
Insulation resistance................................................................................................. > 50,000 mega ohms
Dielectric strength..................................................................................................... 2 KV RMS
Impulse voltage resistance....................................................................................... > 3.6 KV
Current impulse strength............................................................................................> 5 KA
Transmission Performance....................................................................................... Category 5
WARNING – KRONE* type is NOT KRONE*. Occasionally customers may come across copies of KRONE* products being sold in the market which are being passed off as original KRONE* products. Using these products may affect the functionality and quality of your network. Ensure use of original products for an efficient network. Original KRONE products are sold ONLY through ADC KRONE authorised distributors.
