Part No. : 6089 2 011-02D

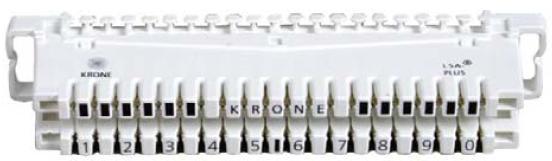

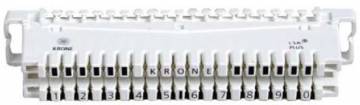

LSA-PLUS® Disconnection Module, for 10 pairs with disconnection facility, Line testing is possible in both directions.
Features:
• Based on genuine KRONE* LSA-PLUS® connection technology
• Fits on all LSA-PLUS® back mount frames
• Suitable for use in all xDSL and ADSL 2+ circuits
• Flexible indoor and outdoor use
• Robust long term environmental stability
• Supports LSA-PLUS® series 2 accessories
• Overvoltage protection using 10 pair protection magazine
• Overvoltage & overcurrent protection using single pair protection (IPM)
Specifications :
Conductor diameter of connectable wires
2 wires per contact ………………..……………………...........................…………… 0.40 to 0.63 mm
1 wire per contact ………………….………………….………… 0.63 t0 0.8 mm AWG 22 to AWG 26
Insulation diameter of connectable wires ……………………………………………0.7 to 1.6 mm
Properties
Connection frequency…………………………………………………….…………………… > 200 times
Test access plug in cycles ……………………………………..……………………………………… > 250
Electrical values
Contact resistance …………………..………………………………………………………. < 2.5 m ohms
Insulation resistance ..…………………………………………………………….…. > 50 000 Mega ohms
Dielectric strength ………………………………………...………………….…………………… 2 KV rms
Impulse current ………………………………………………………………….…... 5 kA ( 8/20 micro sec)
Current carrying capacity …………………………………………………….………………..……….. 2 A
Environmental
Temperature operation………………………………………………………………………- 5 C to +60 C
Relative humidity ……………………………………………………95% , no water condensation, no ice
Materials
Plastics ………………………..……………..PBT, resistant against aggressive chemicals (PVC softener)
Plastics flammability class …………………………………………………..…………………… UL 94 V0
Contact ………………………………………………………………...……….. Special brass , silver plated
WARNING – KRONE* type is NOT KRONE*. Occasionally customers may come across copies of KRONE* products being sold in the market which are being passed off as original KRONE* products. Using these products may affect the functionality and quality of your network. Ensure use of original products for an efficient network. Original KRONE products are sold ONLY through ADC KRONE authorised distributors.
