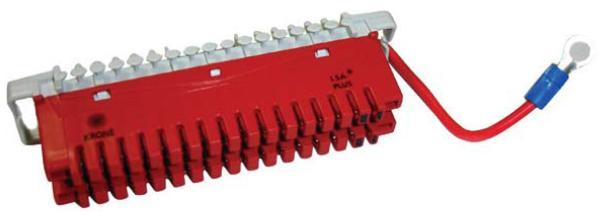

LSA-PLUS® Earth Module is used as a telecommunication functional earthing (TFE) point. Available for 38 contacts on 2/10 and 34 contacts on 2/8 module size.
Features :
• Based on genuine KRONE* LSA-PLUS® connection technology
• Fits on all LSA-PLUS® back mount frames
• Connects integral earth wires to an earth contact
• Common earth wire
• Robust long term environmental stability
Specifications :
Conductor diameter of connectable wires
2 wires per contact …………….………………….…………………… 0.40 to 0.63 mm (same diameter)
1 wire per contact …………….………………………………….. 0.63 t0 0.8 mm (AWG 22 to AWG 26)
Insulation diameter of connectable wires ……………………………………………0.7 to 1.6 mm
Properties
Connection frequency………………….……………………………………………………… > 200 times
Electrical values
Contact resistance ………………………………….………………………………………. < 2.5 m ohms
Insulation resistance ……………….……………………………….………………. > 50 000 Mega ohms
Dielectric strength ………..…………………………………………….………………………… 2 KV rms
Impulse current …………………………………………………………………….. 5 kA ( 8/20 micro sec)
Current carrying capacity ……………………………………………………………………………….. 2 A
Environmental
Temperature operation…………..…………………………………………………………. - 5 c to +60 c
Relative humidity ………………………………………………….. 95% , no water condensation, no ice
Materials
Plastics ……………………………………...….PBT, resistant against aggressive chemicals(PVC softener)
Plastics flammability class ……………………………………..…………….…………………… UL 94 V0
Contact ………………………………………………..………………….…….. Special brass, silver plated
| Description | Quantity | Part No. |
| LSA-PLUS® Earth Module 2/38 (mounts on 2/10 BMF) | Each | 6089 2 017-07 |
| LSA-PLUS® Earth Module 2/30 (mounts on 2/8 BMF) | Each | 6036 2 006-00 |
